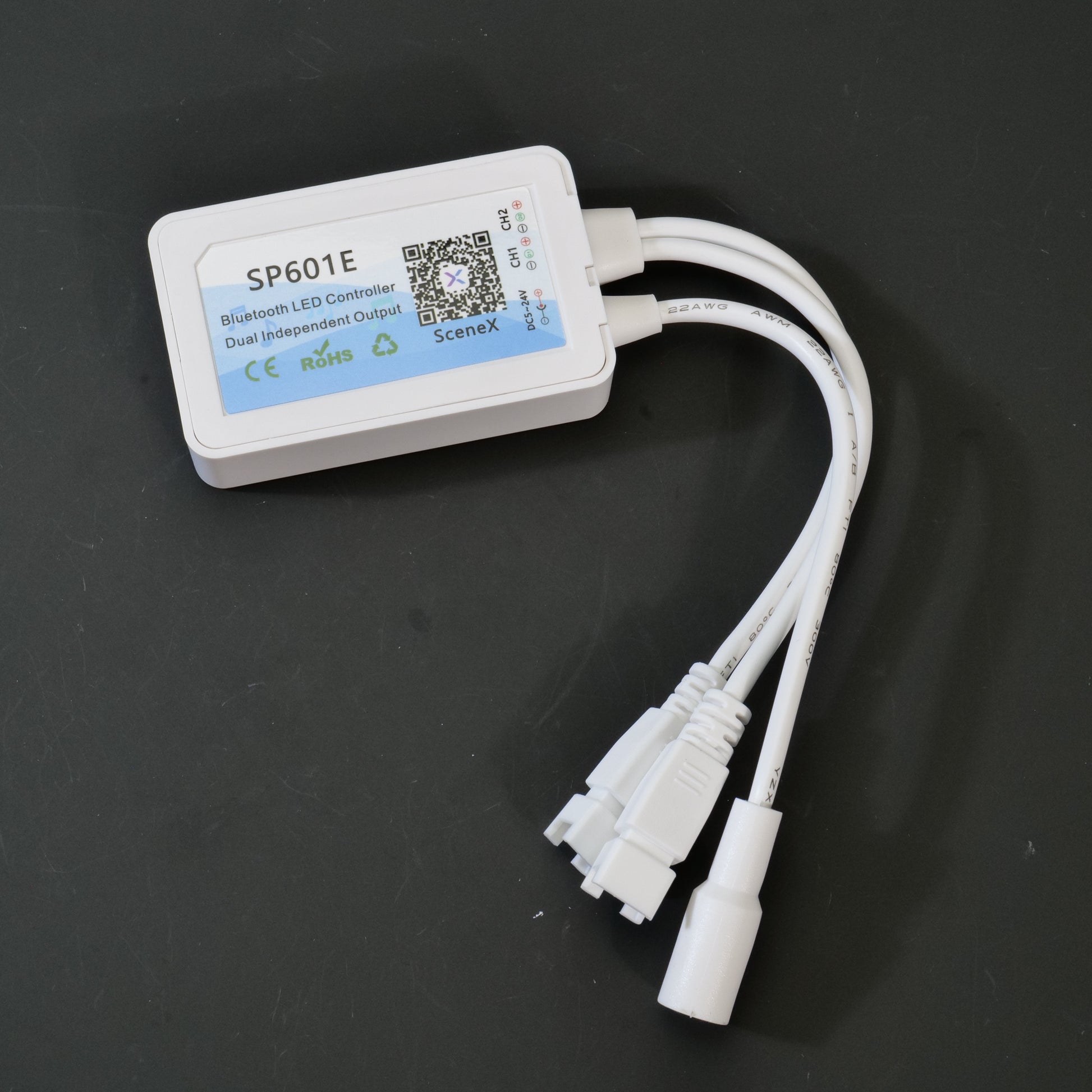

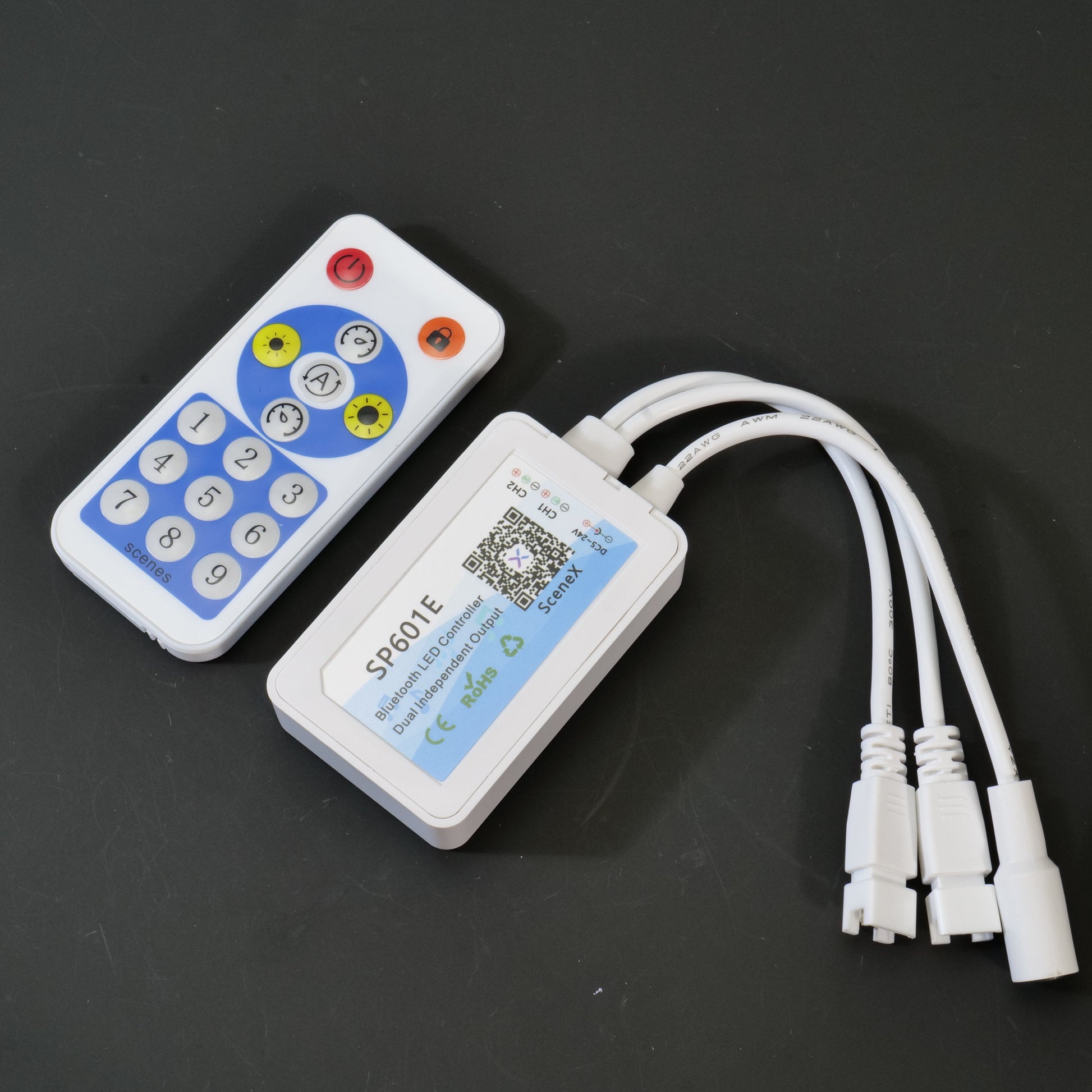

SP601E RGB IC LED Strip Controller: Dual Port & Triple Control (Bluetooth/Remote/App)

1. Key Specifications

2. Core Features

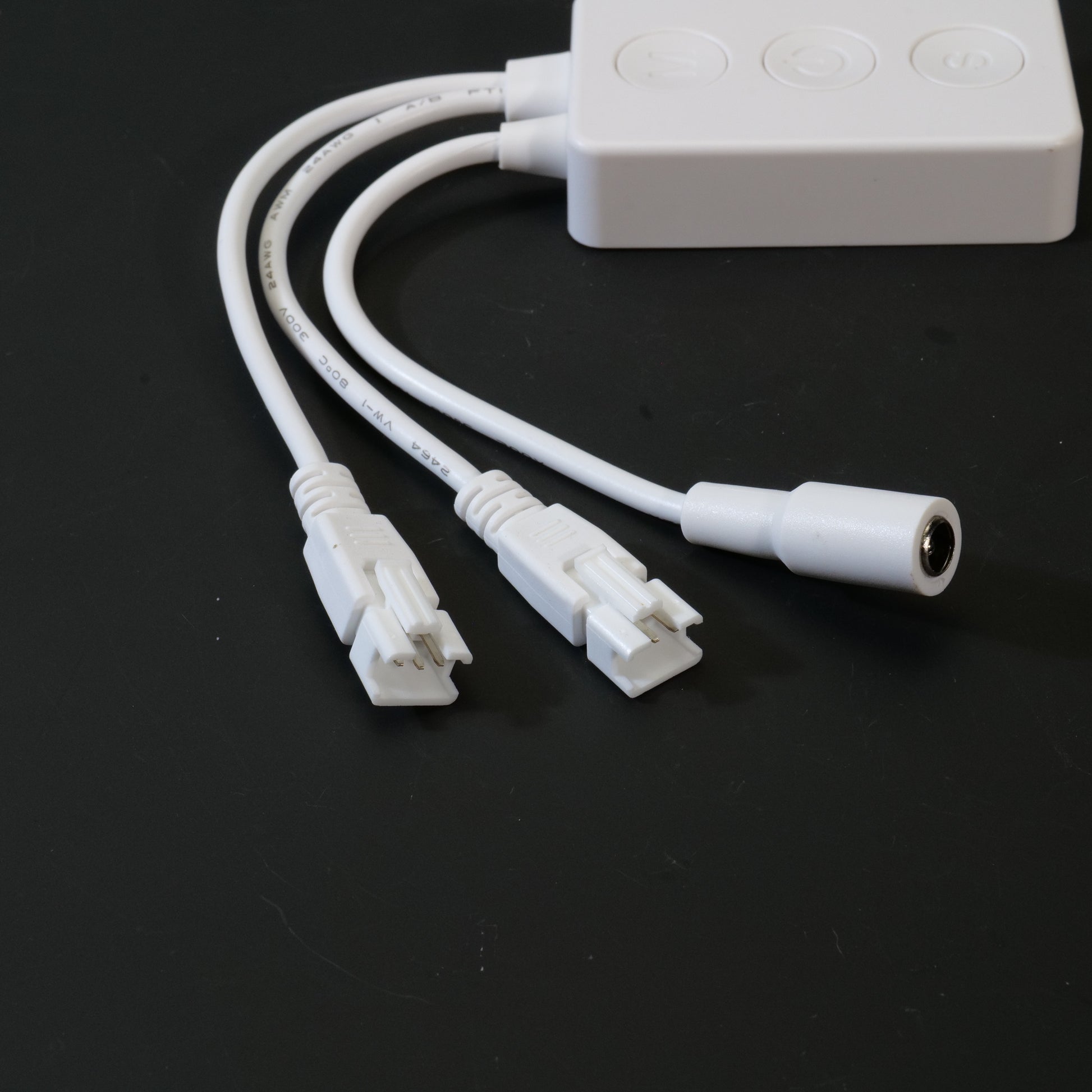

① Dual Port Control: Flexible for Multi-Strip Setups

• Independent or Synchronous Control: Each of the 2 ports can be managed separately (e.g., Port 1 for TV backlight, Port 2 for cabinet strips) or synced to run the same effect—perfect for multi-zone lighting.
• Pixel Expansion: Pair with the SP901E single amplifier to boost pixel capacity by 8x, making it suitable for large-scale projects (e.g., wall pixel art, long corridor strips).

② Triple Control Methods: Convenience for Every Scenario

• Bluetooth APP Control: Connect to iOS/Android devices via the dedicated APP to customize effects (static colors, dynamic chasing), adjust brightness/speed, and save favorite settings.

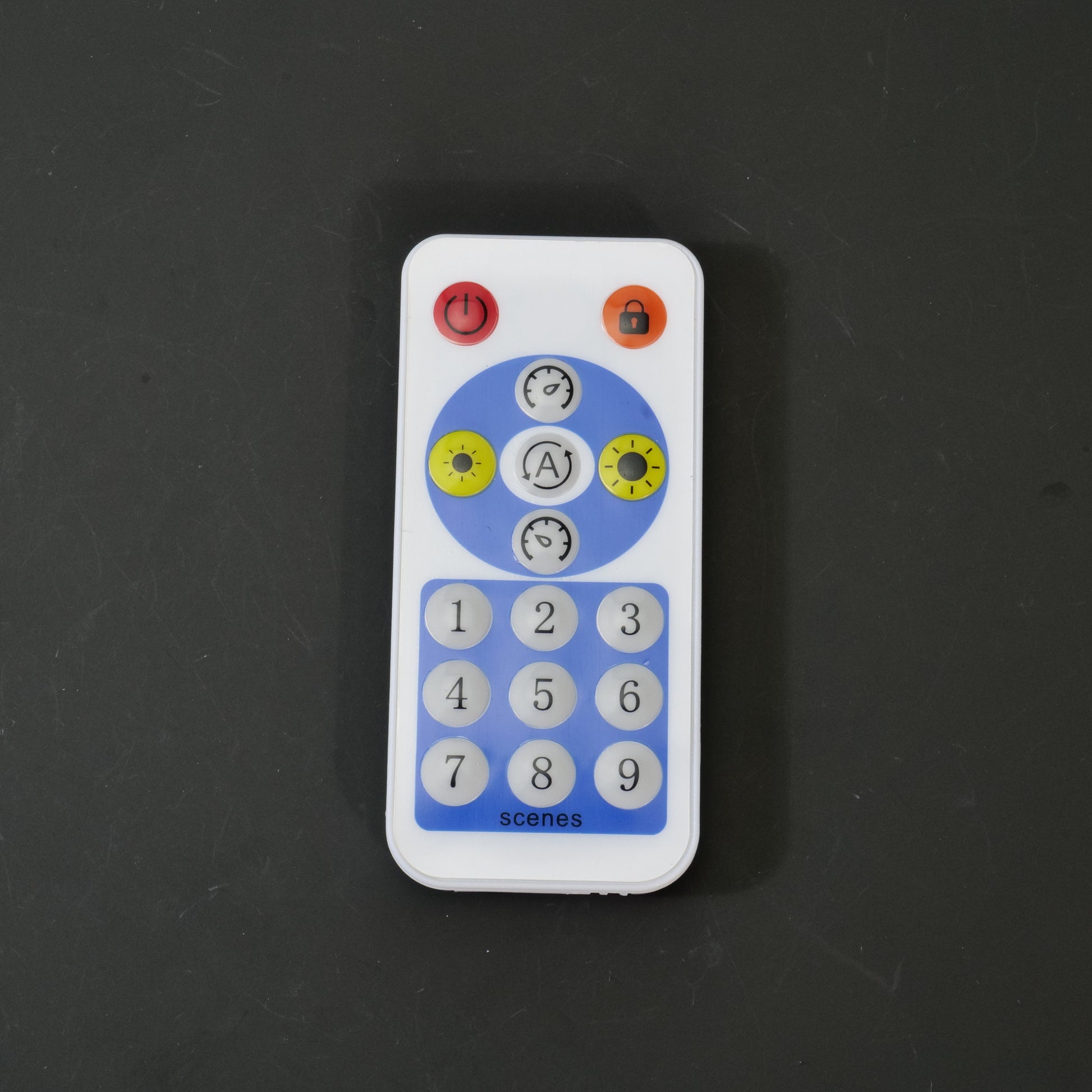

• 50M RF Remote: The included RF remote lets you control lights from afar (e.g., across a living room or store)—no need to pull out your phone.

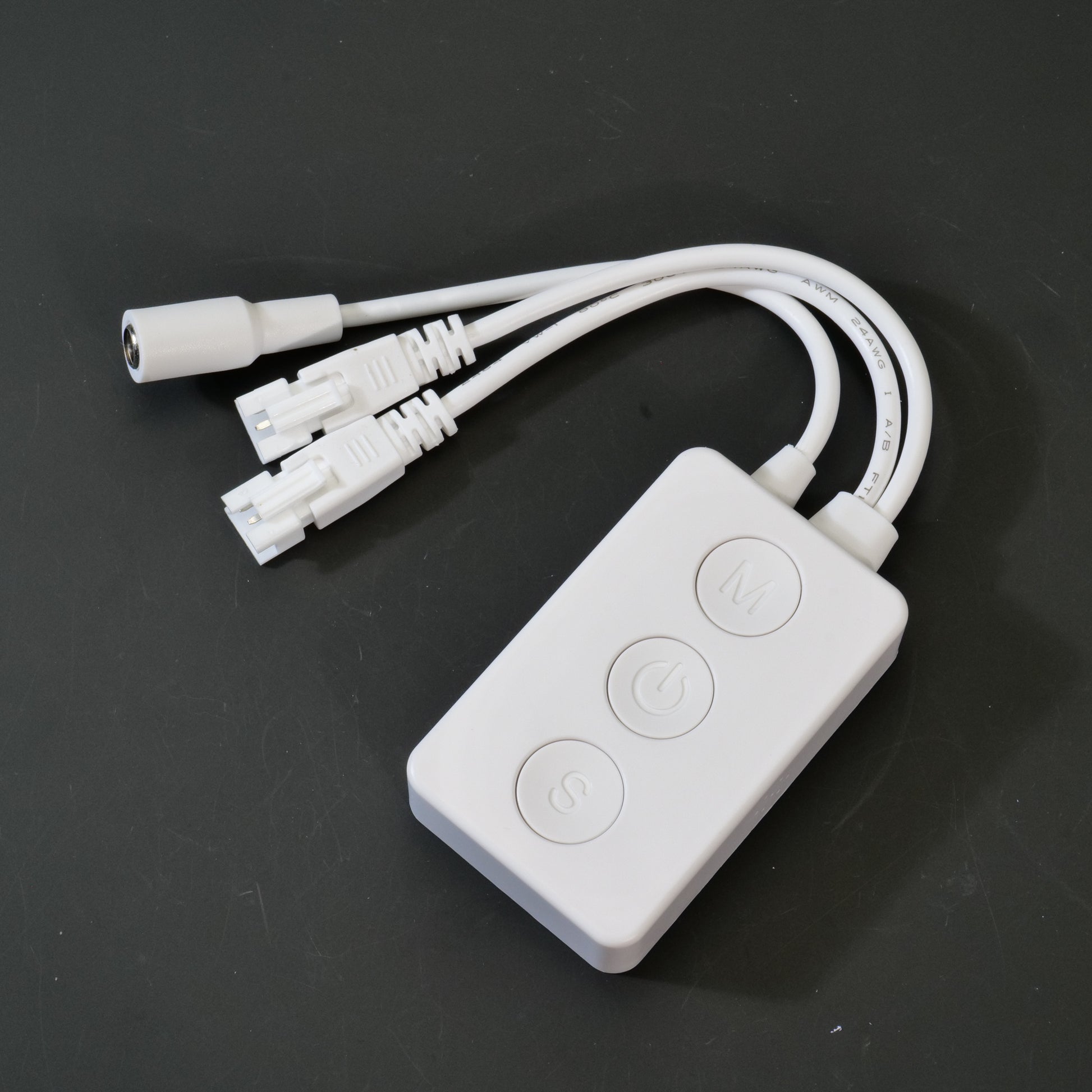

• 3-Key Physical Button: Quick-access buttons on the controller for basic operations (switch effects, adjust speed) when APP/remote isn’t handy.

③ Wide Compatibility & Safety

• Works with most common addressable LED ICs (WS2811, WS2812B, UCS1903, etc.)—no need to replace controllers for different strips.
• CE/ROHS certified: Meets safety standards for low-voltage electronics, safe for long-term use.

3. Critical Notes (Avoid Damage & Ensure Performance)

1. Voltage Matching (Mandatory!):
   • If your LED strip is DC5V, use a DC5V power supply only—never use 12V or 24V. Mismatched voltage will permanently damage the LED strip or controller.
   • Match the controller’s power input to your LED strip’s voltage (e.g., 12V strip → 12V power supply).
2. Pixel Quantity Limits:
   • Each port supports up to 600 ICs/pixels (1200 total for 2 ports). Exceeding this limit may cause lag or effect glitches.
   • For larger setups, use the SP901E single amplifier to extend control to 8x the pixels (9600 ICs total).
3. Long Strip Power Supply:
   • For strips longer than 5 meters, add voltage at every 5-meter interval (voltage drop occurs over distance, leading to dimmer lights at the end).
4. LED Power Calculation:
   • Power consumption varies by color:
     • 1 color (R/G/B): 0.1W per LED
     • 2 colors (e.g., R+G): 0.2W per LED
     • 3 colors (R+G+B): 0.3W per LED
   • There’s no fixed wiring diagram—supplement voltage based on your actual strip length and power needs.

4. Ideal Applications

• Home Decor: TV backlighting, bedroom pixel strips, cabinet accent lighting, ceiling contour lights.
• DIY Projects: Gaming desk setups, PC case mods, small pixel art installations, holiday decorations (Christmas, Halloween).
• Commercial Use: Small retail displays, boutique window lighting, cafe ambiance (multi-zone control for different areas).
