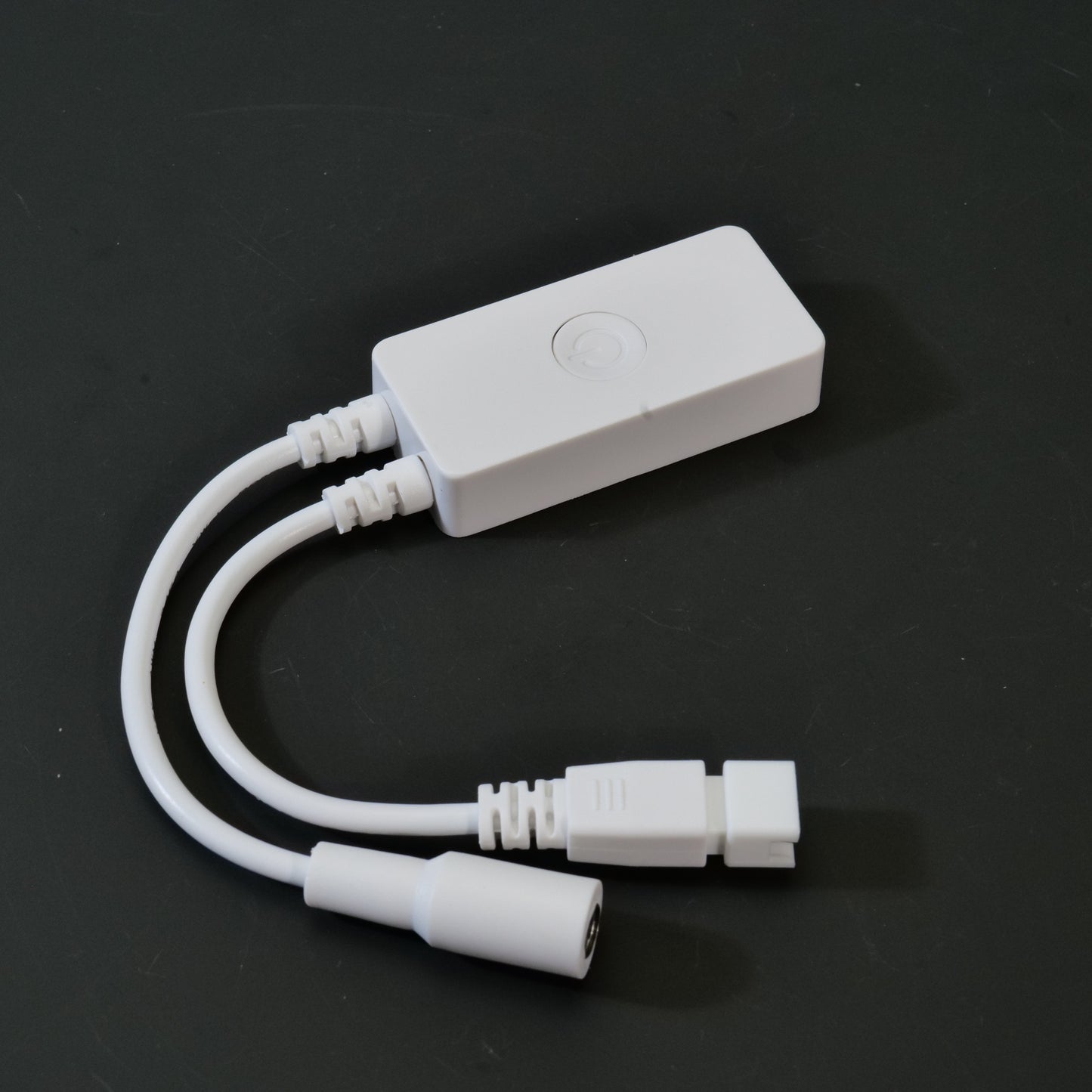

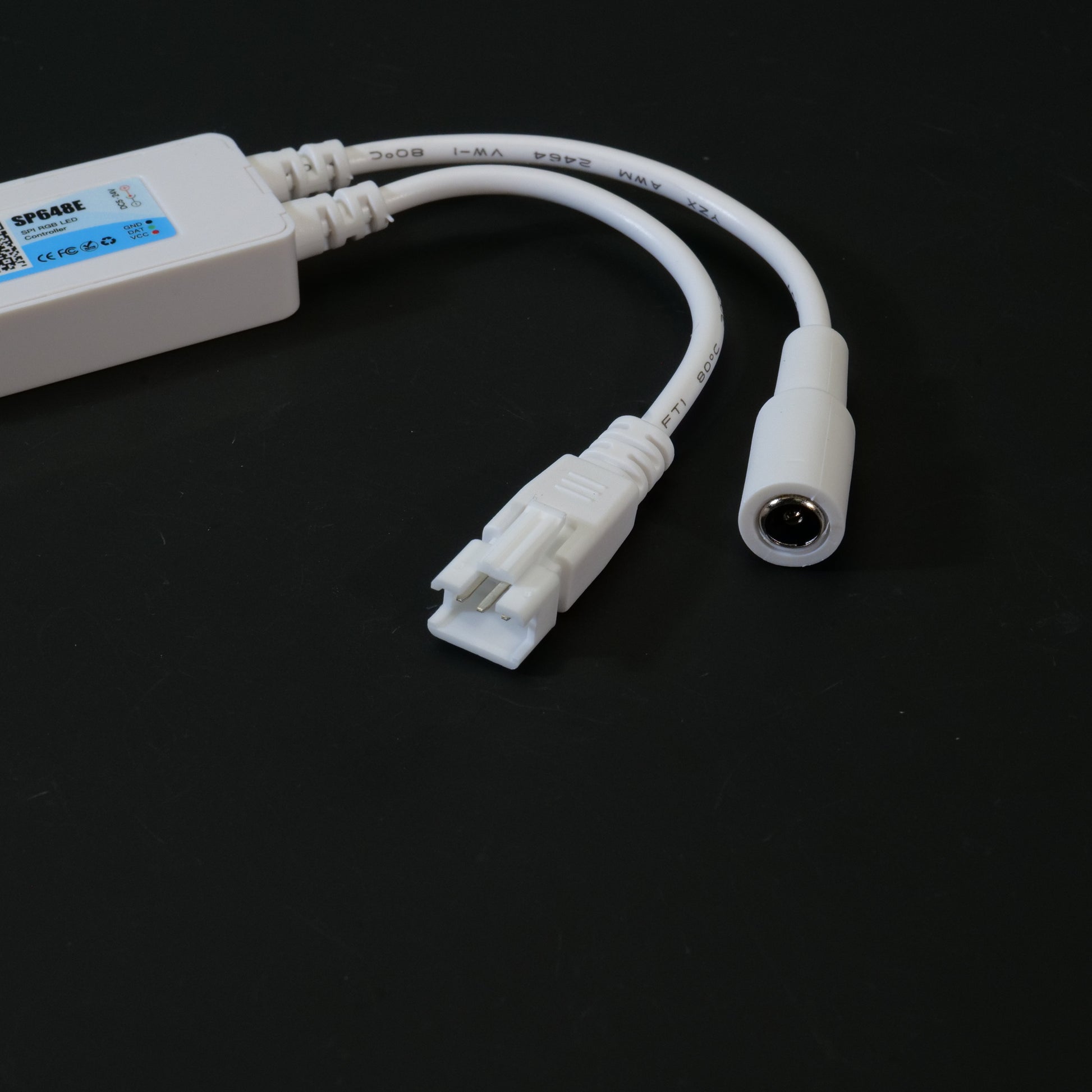

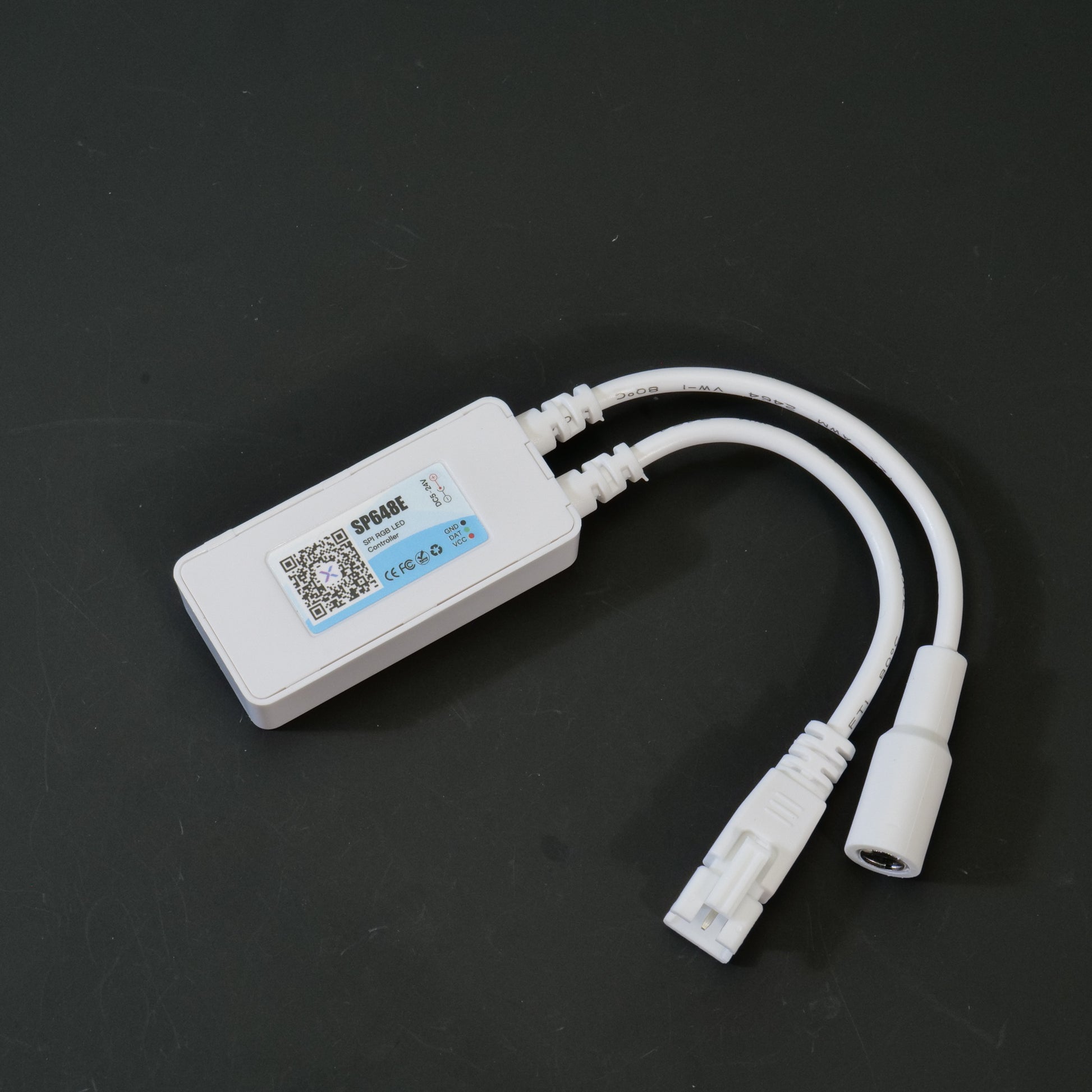

SP648E Controller Kit - SPI Pixels & 5CH PWM, 2.4G Remote/Bluetooth Music, 5V-24V for FCOB/WS2812B/SK6812/RGB/RGBW/CCT/DIM Strips

$23.99

Quantity

Sku:

SP648E-20250822-HSY-10

Category:

CONTROLLER

Tag:
Vendor:

xlhlighting.com

1. Core Series Specifications

Parameter Details
Series Name Bluetooth Music LED Controller Series
Model Range SP641E, SP642E, ..., SP64CE (full lineup: SP641E-SP64CE)
Input Voltage DC5V–24V (matches your LED strip’s voltage; no fixed controller voltage)
Control Methods - "BanlanX" Bluetooth APP (iOS/Android)
- 2.4G RAX Series Remote (STANDARD INCLUDED)
Music Modes 3 audio capture options:
- Phone Microphone (real-time ambient sound)
- Player Streaming (sync to phone music)
- On-Board Microphone (no phone needed)
Output Signal (By Model) - PWM Only: SP641E-SP645E (for non-addressable LEDs)
- SPI Only: SP646E-SP64AE (for addressable LEDs)
- PWM + SPI: SP64BE, SP64CE (hybrid control for mixed LED setups)
APP Compatibility "BanlanX" (BT-enabled; search in App Store/Google Play)

2. Key Series Features

① Dual Control for Flexibility

  • APP Control: Use the "BanlanX" APP to customize effects, adjust brightness/speed, and manage multi-device grouping. Supports automatic connection/reconnection for hassle-free use.

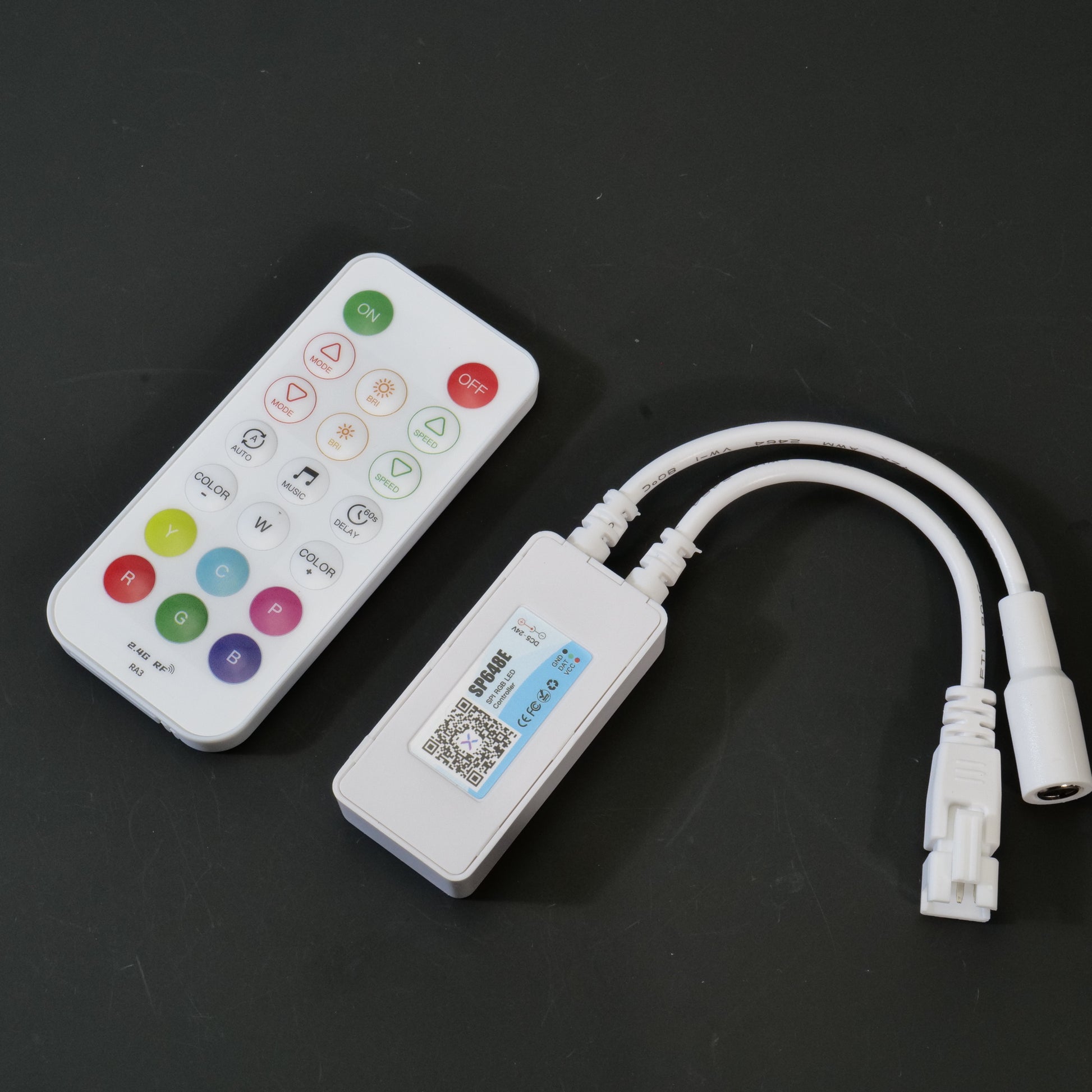

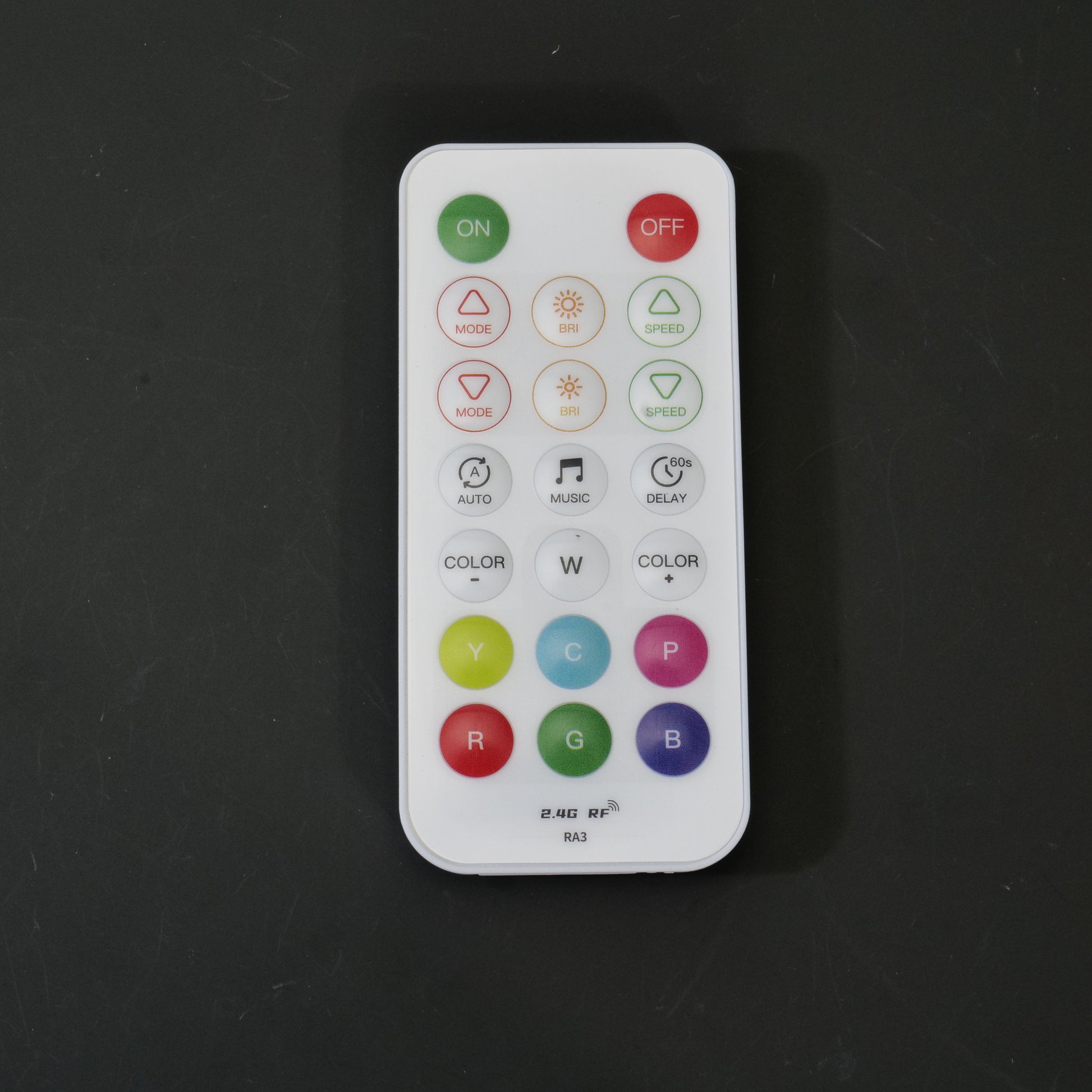

  • 2.4G Remote Control: Included RAX series touch remote works for quick adjustments. Set 4 independent zones (for multi-room lighting) or control all devices at once (unified "ALL" mode).

② Professional Lighting Performance

  • High-Frequency PWM Dimming: PWM models (SP641E-SP645E) support 8KHz dimming—ensures smooth brightness transitions (no flicker) for CCT/RGB/RGBW LEDs.
  • SPI IC Compatibility: SPI models (SP646E-SP64AE) work with all common single-wire driver ICs (WS2812B, SK6812, WS2811, FCOB, etc.).
  • Channel Support: Calibrate channel sequences; 3-channel drive ICs supported (SP649E: 4 channels; SP64AE: 5 channels) for complex lighting setups.

③ Smart & Scalable Functions

  • OTA Firmware Upgrades: Automatically update via the APP to access new features and optimize performance—no need to replace hardware.
  • Switch & Startup Settings: Customize switch animation effects (e.g., fade, flash) and default power-on states (retains your last settings).
  • 5 Dedicated APP Control Pages:
    • Dynamic: Pre-set moving effects (rainbow, chasing).
    • Static: Fixed colors/brightness.
    • Music: Sound-sync modes.
    • Custom: Create and save your own effects.
    • Setting: Manage timers, zones, and OTA updates.
      Page content adapts to your controller model (PWM/SPI/hybrid).

3. SPI vs. PWM: Which Model Is Right for You?

Choose a controller based on your LED strip type—use this quick guide to match:

Feature SPI Models (SP646E-SP64AE) PWM Models (SP641E-SP645E)
LED IC Type With IC (addressable/pixel LEDs) Without IC (basic dimmable LEDs)
Wiring 3PIN/4PIN (includes DATA wire) 2PIN–6PIN (V+ + color wires; no DATA)
Key Use Case Dynamic pixel effects (chasing, music spectrum) Simple dimming/color temp adjustment (e.g., warm white → cool white)
Compatible Controllers (Reference) ESP8622, Rasp Pi, Arduino, SP611E WIFI WB5, Zigbee LM052, Bluetooth LM053

4. Important Notes

  • Voltage Matching: Use a power supply with the same voltage as your LED strip (e.g., DC5V for 5V strips, DC12V for 12V strips). Mismatched voltage may damage the controller or LEDs.
  • Remote Compatibility: The included 2.4G remote is RAX series-specific—ensure compatibility if replacing.
  • APP Pairing: Enable Bluetooth on your phone; pair with one controller at a time for stable connection.

5. Ideal Applications

  • Home Decor: Multi-room RGB lighting, TV backlighting, bedroom pixel strips, cabinet accents.
  • Commercial Use: Retail displays, boutique window lighting, hotel ambiance (zone control for large spaces).
  • DIY Projects: Gaming desk setups, PC case mods, large pixel art, holiday decorations (Christmas, Halloween).
  • Mixed Setups: Use SP64BE/SP64CE (PWM+SPI) for combinations like "RGBW downlights (PWM) + pixel strip borders (SPI)".

With complete models, dual control, and professional performance, the SP64XE series is the all-in-one solution for any LED lighting project—whether you need simple dimming or dynamic music-synced effects.
